Old vs new robot

I still have my RS4 robot and it is fully functional.
You can see in the picture the size difference between them, they have the same capabilities.
I managed to better integrate all the components in the newer robot.

RS5 - 3D printed Raspberry Pi 3 robot

I always wanted to continue the development and add new features to the RS4 robot, the initial idea was to make a more autonomous robot. I decided to do some more work, but the platform needed to be updated. As 3d printers are becoming cheap that was the way to go, developing parts is way easier and no more cutting and drilling.
I'm an electronics engineer so 3D modelling is not something I am used to do, I was able to learn a few things in tutorial videos and began to 3d printing my first parts with success. I'm using SketchUp, it is not the most friendly software but with some dedication I was able to design  and print some parts.
In this images you can see the complete assembly model including all the parts, printable and not printable.

I also wanted a smaller robot but with all the modules that I used in the previous one. I picked up some similar but smaller wheels and nema17 steppers for the motion. This time I'm using a STM32 microcontroller, much more powerful than the PIC I was using before. The STM32 board controls every module on the robot, balance/movement, head servos, eye color and distance readings.
In this video it is possible to see all the modules being tested over a Bluetooth connection, no Raspberry Pi present. The board communicates via UART, using a Bluetooth UART converter is straight forward.

At this point adding Raspberry Pi to the robot is not that hard, just need to implement the UART commands, compile and install OpenCV and the integration is complete. I'm using Raspberry Pi 3, the old camera module and the Raspicam Api http://www.uco.es/investiga/grupos/ava/node/40.
Performance is not great but it is acceptable, I know that there are some optimizations that can be used to achieve better OpenCV performance, I'll try them later. At the moment I'm using 640x480 resolution. In the next video the robot is following a black line using image processing, similar process has been used before in the RS4 robot.

Here you can see some close photos of the robot, not the best color :)

The idea for this robot is to have a platform to implement cool features, it has some potential that can be used to develop a really nice robot.
I would like to make it available for other people, that would require some more time and money to develop it, make it more close to a product. I'm not sure if there are people interested in a robot that requires some advanced programming skills.
Would you like to have one? Just let me know :)

New robot for future work

Hello all,

I'm working in a new robot that will be my new platform for development, it has the same architecture as the previous one, two wheel self balancing robot, but it is built using 3D printed parts which make everything easier to develop and replicate.
You can see it working in this video, remote control only for now.

It was designed to integrate a raspberry pi 3 and camera module, at the moment there's some work to do on it for the robot to be autonomous. I'll reveal more information in the next posts. My time for this hobby is limited but will try to keep it moving forward.


Best regards :)

RS4 - Robot line following feature

The robot has a new feature, it can follow a black line painted on the floor.
I've created a new sign with a line, when the robot reads this sign it will begin the line following process.

How it works

In fact the line following feature is implemented in a very simple way. Because the line is black is easy to isolate from the ground and this is performed using a simple binarization. Here are the steps of the implemented feature.

1. ROI

First thing to do is to chose a ROI (region of interest) like showed in the next picture.

In this case the middle region of the image will look like this:

Changing the ROI image (up an down) will change the robot behavior in the corners. If a top region is chosen the robot will turn sooner, otherwise it will turn later. This requires some tuning, it will depend on the robot speed and camera tilt angle.

Code looks like this:

Rect roi(0, 190, 640, 100);
greyImg(roi).copyTo(roiImg);

2. Threshold

Next thing to do is to threshold ROI image, the threshold level has to be tuned, the ideia is to get something like this:

I'm using morphological operations to reduce noise. Code looks like this:

threshold(roiImg, roiImg, thVal , 255, 0);

bitwise_not(roiImg, roiImg); // negative image

Mat erodeElmt = getStructuringElement(MORPH_RECT, Size(3, 3));

Mat dilateElmt = getStructuringElement(MORPH_RECT, Size(5, 5));

erode(roiImg, roiImg, erodeElmt);

dilate(roiImg, roiImg, dilateElmt);

3. Find contours and center

Next step is to find image contours, in this case it will have just one contour (white quadrilateral). After finding image contour is easy to find its center that will be used to turn the robot. If the contour center moves to one side, the robot must turn to follow it.

Code to find center:

findContours(roiImg, contours, hierarchy, CV_RETR_TREE,CV_CHAIN_APPROX_SIMPLE, Point(0,0));

for (size_t i = 0; i < contours.size(); i++) {

float area = contourArea(contours[i]);

if (area > 2000) {

Moments mu;

mu = moments(contours[i], false);

Point2f center(mu.m10 / mu.m00, 240); // point in center (x only)

circle(camera, center, 5, Scalar(0, 255, 0), -1, 8, 0);

}

}

RS4 - Robot Update (new features)

RS4 now can detect and read some signs and perform associated actions. In these videos it follows and reads various signs.

How it can read signs using OpenCV

First it must locate a sign and move to it, this is performed by following the blue color around around the signs. I'm having issues with color tracking because the AWB keeps changing the image lightning and at the moment I can't turn it off. The problem is already exposed in the raspberrypi.org forum and they are working in a solution.

When it is close to the sign it performs the next steps to read it:

1. Find image contours

Apply GaussianBlur to get a smooth image an then use Canny to detect edges. Now use this image to find countour using OpenCV method findContours. The Canny output looks like this:

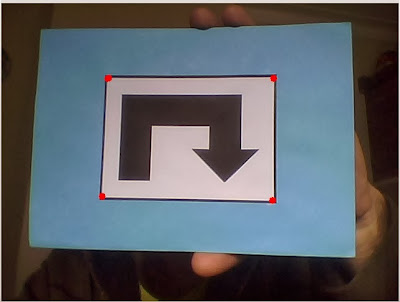

2. Find approximate rectangular contours

All the signs have a black rectangle around them so the next step is to find rectangular shaped contours. This is performed using approxPolyDP method in OpenCV. At this point found polygons are filtered by number of corners (4 corners) and minimum area.

3. Isolate sign and correct perspective

Because the robot moves it will not find perfectly aligned signs. A perspective correction is necessary before try to match the sign with the previous loaded reference images. This is done with the warpPerspective method. Details how to use it here:

http://opencv-code.com/tutorials/automatic-perspective-correction-for-quadrilateral-objects/

In the next image you can see the result of the process, in "B" is showed the corrected image.

4. Binarize and match

After isolate and correct the interest area, the result image is binarized and a  comparison is performed with all the reference images to look for a match. At the moment the system has 8 reference images to compare.

Comparison is performed using a binary XOR function (bitwise_xor). In the next images is showed the comparison result for match and not match, using countNonZero method is possible to detect the match sign.

Match image

 Not match image

Result

This methodology works well and it is fast enough to use it in Raspberry Pi. I've tried known methods like SURF and SIFT but are to slow for real time application using Raspberry Pi.

RS4 - Self balancing Raspberry Pi OpenCV image processing Robot

Here is the robot that I'm working on, you can see the latest video here, although it suffered some modifications since then.

I'll divide this description in topics as it's easier for me to describe it this way. The idea to build this robot came from buying a Raspberry Pi, when I saw it I said "I've got to build a robot with this " :) . I have built other robots in the past but this one is the most complex and the first with image processing.

Chassis

The robot chassis was designed by me, I used a 3D tool to generate some previews mainly because I needed to have an idea of the size and components distribution before build it. Here you can see the model of the robot:

After this I began the building process, I bought a carbon fiber plate (more or less the size of a A4 sheet) and cut all the pieces by hand with a mini drill machine (unfortunately I don't have a CNC machine to do this job). I bought some aluminum profiles to make spacers and fixing parts as you can see in the next photo. The result is a very light and strong chassis.

Motors and wheels

I'm using stepper motors in this robot, no special reason for that. I bought them as Nema 17 motors, the motors reference is  LDO-42STH38-1684A 121121 LDO MOTORS. These type of motors have a nice robust look and are usually used in CNC and RepRap machines.

The wheels are from a RC 1/8 Buggy, you can find it easily in any RC store as they are standard size. What I like the most in this wheels is their soft touch, this way they work as a damper for small obstacles allowing smooth run.

To connect the wheels to the motors I used Traxxas Revo hubs and nuts like showed in the photo, these are the only ones that I found with a 5 mm hole, the same as the motors shaft. This way is more or less plug and play.

Head

For pan and tilt I use 2 micro servos (Tower Pro MG90S), very cheap and easy to get. The head has a holder for the Raspberry Pi camera module, a ultrasonic sensor and 2 RGB LEDs.

You can see some details of the robot in the next photos

Balancing and motor control Board

This robot uses a dedicated board for balancing and motor control (I want to use Raspberry Pi only for high level tasks). This board is my design and it uses the following components:

 - 2 L298 + 2 L297 stepper motor drivers, (yes, I know they are old but they are cheap and easy to find to, in a future revision I'll use something from this century :) );

 - Murata ENC-03 Gyroscope, analog single axis gyro, very easy to use;

 - MMA7361L Accelerometer, 3 axis analog accelerometer (I use a module, this chip is to small to hand soldering);

 - PIC24FJ64GA002 microcontroller

It allows I2C and serial communication. Photo of the board and the motors here:

Servo control board

I'm using a modified motor board to control two servos and to read the ultrasonic sensor (not yet being used). This is a temporary solution, I intend to design a dedicated servo control board or buy one.

Power

The energy to power the robot comes from a 2000 mAh LiPo 3S battery. To generate required voltages I'm using one 3.3V regulator and two 5V switched regulators. I want to design a dedicated power board in a future revision.

Balancing control

PID

Balancing control is performed by a PID cascade, like showed in the next picture. This way is possible to balance the robot even if you move the center mass or run it in a ramp. It will find a new balance angle that allows it to be balanced and stopped. In fact both the controller are PI only, the derivative gain is set to 0 because it causes the robot to shake even with small gain.

  PID implementation is as simple as this:

    pTerm = Kp * error;

    sum += error;

    iTerm = Ki * sum*Ts;

    dTerm = Kd * (error - lastError) / Ts;

    Cn = pTerm + iTerm + dTerm;

    lastError = error;

For PID tuning I used a Bluetooth module which allows me to adjust Kp,Ki,Kd for both the controller in real time. This way you can immediately view the effects and reach the desired behavior for the robot. In this video you can see it successfully balanced for the first time .

Sensor fusion

Sensor fusion (gyroscope + accelerometer to get the leaning angle) is performed by a Kalman filter, not much to say about it, it works really well.   Follow this fantastic tutorial, here is everything you need to know, includes explanation and implementation.

  http://blog.tkjelectronics.dk/2012/09/a-practical-approach-to-kalman-filter-and-how-to-implement-it/

Motion control

OK, the robot is balanced but now it is necessary to move it. Moving forward an back is quite easy with this PID cascade setup, you just have to give a set point to the first controller and it will calculate the appropriate leaning angle to reach that speed. Something like this:

  setAngle = calcCn1(instSpeed - setSpeed);

  instSpeed= calcCn2(angle - setAngle);

To turn the robot I'm attenuating the speed in one wheel, depending on the side it needs to turn. This way the robot keeps the balance as both wheels are reflecting the control system speed. Implementation looks like this:

 instSpeedL = instSpeedR = instSpeed;

 motorSpeedL(instSpeedL * factorL);

 motorSpeedR(instSpeedL * factorR);

 0 ≤ factorL ≤ 1,     0 ≤ factorR ≤ 1

To perform spins, rotating in turn of itself, what I do is to give an opposite offset speed to the wheels. With the wheels rotating symmetric speeds it will perform a spin and stays balanced, completing the implementation it will look like this:

 motorSpeedL(instSpeedL * factorL + spinSpeed);

 motorSpeedR(instSpeedL * factorR - spinSpeed);

 If spinSpeed is positive the robot will spin clockwise, other way it will spin counter clockwise.

That’s the way I found to control the robot motion, there are possibly other methods. Other important thing is that with stepper motors you shouldn't apply big speed changes abruptly or they will slip, this can be solved with some low pass filter applied to factorL/R and spinSpeed. This way works well in my robot. In this video you can see the a run with Bluetooth control, it can run faster than this but will easily fall if it finds some small bumps on the road.

Raspberry Pi

I'm using a Raspberry Pi model B 256 MB with a micro SD adapter because of the limited space on the robot. I have a small WiFi adapter but the robot is not yet using it. The installed operating system is Raspbian, I managed to get OpenCV working with the Camera module thanks to this tutorial, great stuff here:

http://thinkrpi.wordpress.com/2013/05/22/opencv-and-camera-board-csi/

At the moment I'm using serial communication between the Raspberry and the motor board and servo control board but I intend to use I2C as it is a more appropriated method. The reason I'm using serial now is because the interface code was already done for the Bluetooth module (it is a cheap serial Bluetooth module). I have to spend some time working in the I2C interface.

Serial interface with the Raspberry is quite easy, you just have to disable terminal emulation. I'm using WiringPi library to achieve serial communication and to control Pi's GPIOS without any issues.

Image processing

I have very little experience with image processing, it is the first time I'm using OpenCV and I'm still learning how to use it. My first example is the object tracking (ball) by color filtering like in this tutorial:

http://www.youtube.com/watch?v=bSeFrPrqZ2A

It works well but is sensitive to lightning changes, at this moment I'm using YCrCb color space instead of the HSV but the results are similar. With the object coordinates in the screen I control the servos to point the camera to the object and control the robot direction based on the head angle.

The ball following was the first simple example to integrate all the parts of the robot, the robot behavior was funny and I decided to publish the video on youtube.

Final remarks

This robot is an ongoing project, I'm continuously building new parts and modifying others. I don't have a defined goal for this robot, I would like to give it some autonomous navigating capabilities. It has some real potential I just have to work on image processing and learn some more technics. I intend to add a speaker too.

In the initial robot sketch it has 2 arms, it would look cool but it gives a lot of work to build and I'm aware that is hard to give it some useful function like grabbing objects or something. I could use arms to get the robot back on balance after a fall, maybe in a future update.

I have implemented odometry in this robot, at the moment I'm not using it. A 3 axis gyro would be very useful to correct odometry angle errors, a point to review in future revision.
